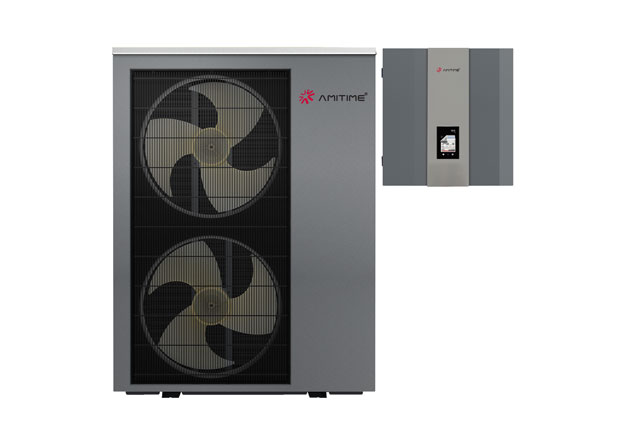

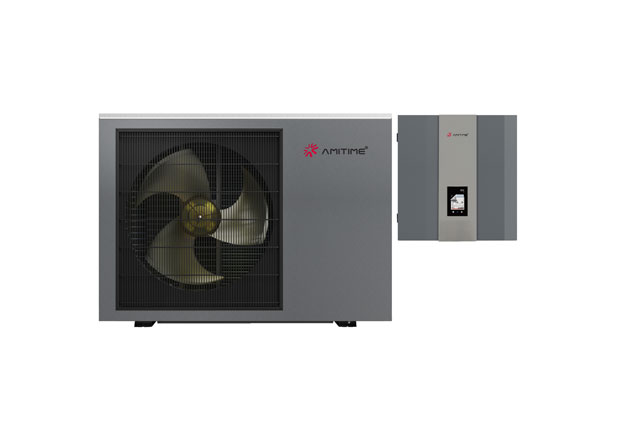

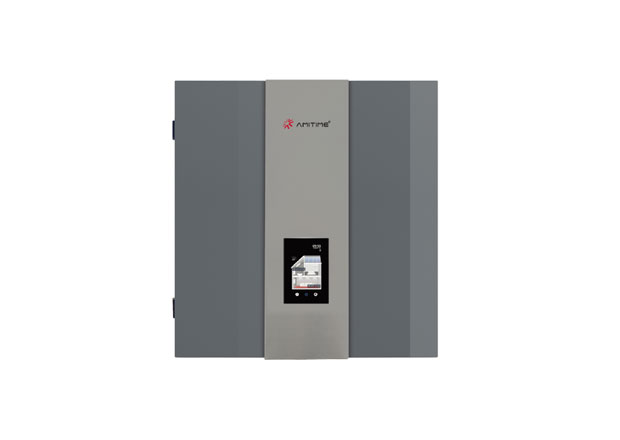

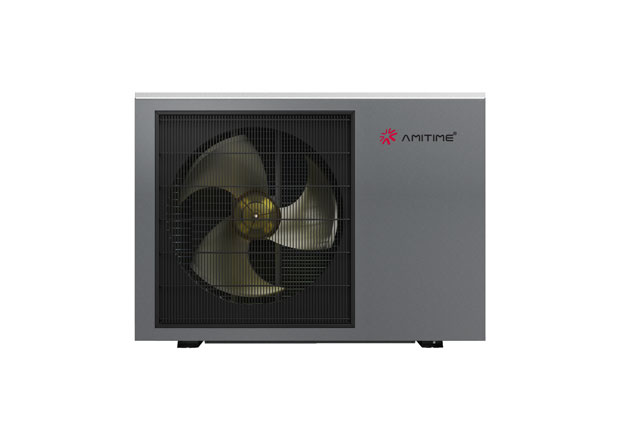

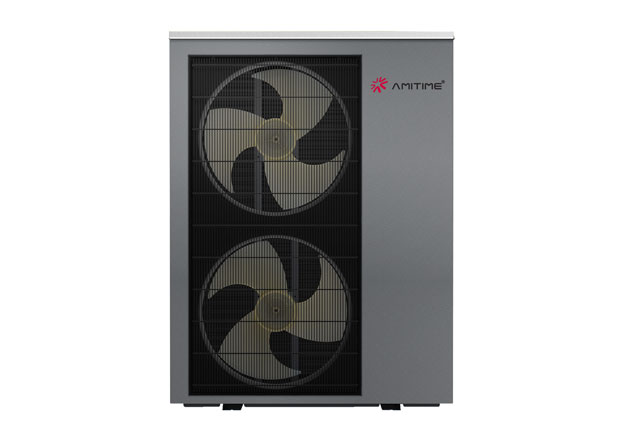

The M-CB series with controller box, it can help to make the wiring of the unit more easily, and put the controller inside of the house for easy operation.
The monoblock system with a controller box, which is easy for installation and no additional water or refrigerant piping requirement. It can be simply plumbed to your house's heating system by using communication cable connections.
Monoblock type with a controller box
User-friendly youch screen interface
With Wi-Fi module and APP control
Refrigerant pipe connetion for best system stability even in tough weather
E-heater, diverter valve and water pump can be included
A+++ Energy Rating Level
Low noise sound power level as low as 52dB(A)
Work down to -25 degree C
Wifi solution available
| HeatSTAR+ Series-CB | ||||||||
| Model | HeatSTAR06M-CB | HeatSTAR09M-CB | HeatSTAR12M-CB | HeatSTAR15M-CB | HeatSTAR19M-CB | |||
| Seasonal Energy-(According to EN14825) | ||||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.58/3.40 | 4.61/3.32 | 4.60/3.36 | 4.70/3.24 | 4.70/3.28 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.13/4.56 | 6.39/5.97 | 8.79/7.07 | 11.60/11.04 | 16.19/12.29 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 180.1/133.2 | 181.3/129.6 | 181.2/131.5 | 185.1/126.6 | 185/128.1 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 1865/2770 | 2864/3720 | 3944/4345 | 5096/7039 | 7117/7746 | ||
| Sound power level (indoor/outdoor) | dB(A) | 45/54 | 46/54 | 46/54 | 40/57 | 44/57 | ||
| Nominal Capacity and Nominal Input | ||||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.86/7.45 | 3.52/9.22 | 4.49/11.7 | 6.02/15.5 | 7.68/18.5 |
| Heating Power Input Min./Max. | kW | 0.71/1.74 | 0.82/2.14 | 0.99/2.77 | 1.42/3.38 | 1.57/4.23 | ||
| C.O.P | W/W | 4.06/4.43 | 4.31/4.59 | 4.22/4.64 | 4.23/4.96 | 4.38/4.89 | ||
| Heating Capacity Min./Max | A7/W45 | kW | 2.64/6.80 | 3.16/8.68 | 3.85/11.3 | 5.32/14.5 | 6.97/18.2 | |
| Heating Power Input Min./Max. | kW | 0.86/2.06 | 1.01/2.56 | 1.24/3.35 | 1.58/4.09 | 1.94/5.08 | ||
| C.O.P | W/W | 3.07/3.37 | 3.12/3.49 | 3.12/3.47 | 3.37/3.70 | 3.58/3.72 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 3.11/7.41 | 4.30/9.49 | 7.0/ 9.8 | 7.23/18.6 | 16/19.3 |
| Cooling Power Input Min./Max. | kW | 0.46/1.89 | 0.54/2.29 | 1.73/ 2.51 | 1.42/5.0 | 4.70/6.30 | ||
| E.E.R | W/W | 3.92/4.7 | 4.15/4.7 | 4.05 / 3.9 | 3.71/5.09 | 3.05/3.41 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.96/4.26 | 2.21/6.40 | 3.03/8.49 | 4.46/13.1 | 5.84/15.8 | |
| Cooling Power Input Min./Max. | kW | 0.54/1.77 | 0.60/2.13 | 0.79/3.08 | 2.68/4.32 | 1.33/5.47 | ||
| E.E.R | W/W | 2.40/3.64 | 2.94/3.68 | 2.57/3.86 | 1.67/3.22 | 2.89/4.40 | ||
| General Info | ||||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 58/25 | 58/25 | 58/25 | 58/25 | 58/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R32/ 0.9kg | R32 / 1.4kg | R32 /1.8kg | R32 / 2.55kg | R32 / 2.6kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | Rotary | ||
| Four-way valve + EEV | sanhua | sanhua | sanhua | sanhua | sanhua | |||
| Fan | Quantity | 1 | 1 | 1 | 1 | 1 | ||
| Airflow | m3/h | 2500 | 3150 | 3150 | 6200 | 6200 | ||
| Rated power | W | 35 | 45 | 45 | 90 | 90 | ||
| Water Side | Type | |||||||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.30/0.43/0.56 | 0.40/0.57/0.75 | 0.5/0.72/0.93 | 0.64/0.91/1.18 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | 450x380x132 | 450x380x132 | 450x380x132 | 450x380x132 | 450x380x132 |
| Outdoor Unit | mm | 1010x370x700 | 1165x370x845 | 1165x370x845 | 1085x400x1450 | 1085x400x1450 | ||
| Net Weight | Indoor Unit | kg | 9 | 9 | 9 | 9 | 9 | |
| Outdoor Unit | kg | 67 | 80 | 87 | 132 | 142 | ||
