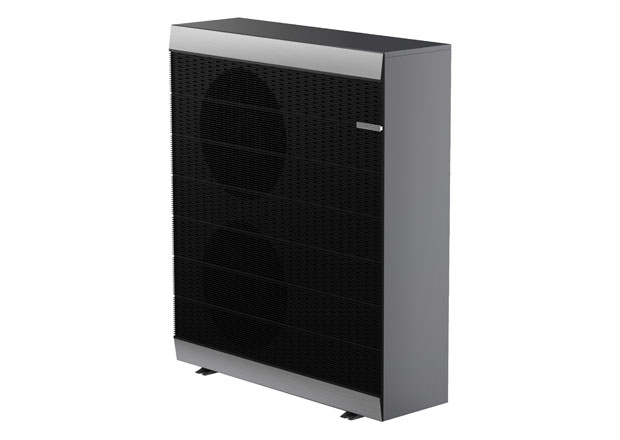

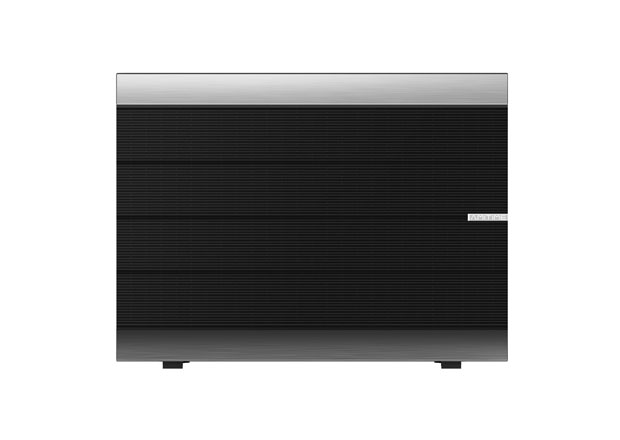

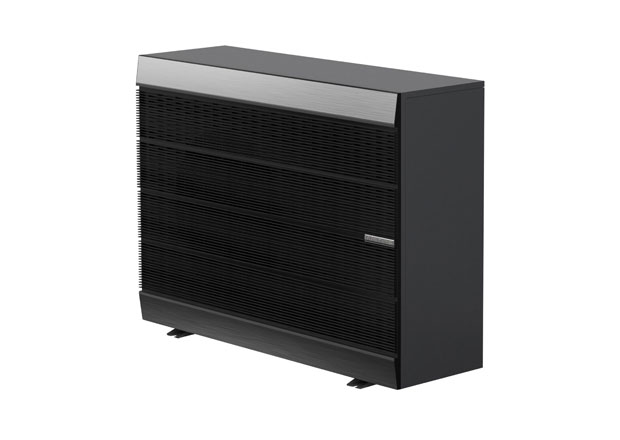

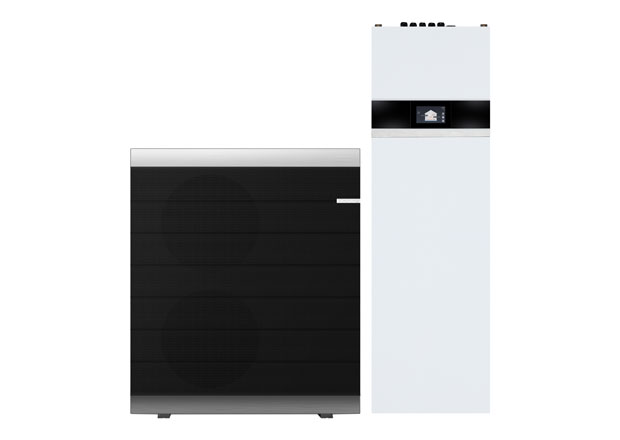

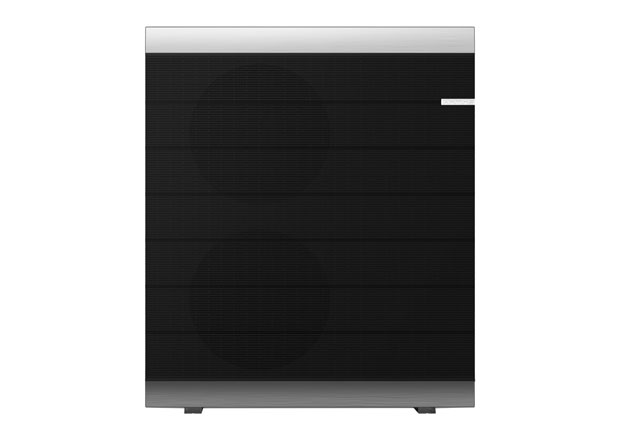

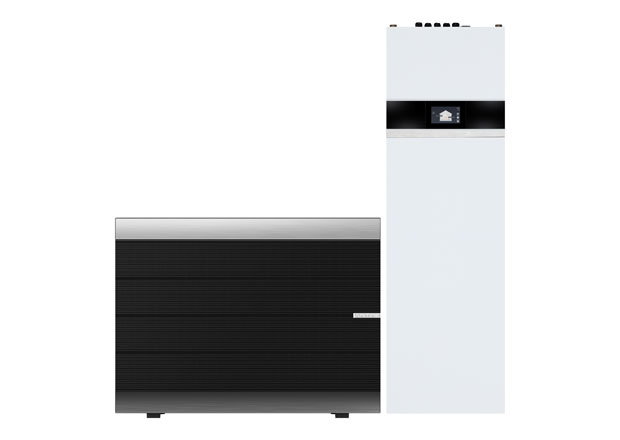

AMITIME EcoSTAR series R290 heat pump is now the best solution for new buildings. This type of R290 heat pump for sale can reach the max. heating temp. up to 75℃. With good performance in this water temp. range, air to water heat pump unit is now possibly used to reform the old gas/oil boiler without changing the existing heating distribution system.
Supply high water temperature up to 75℃

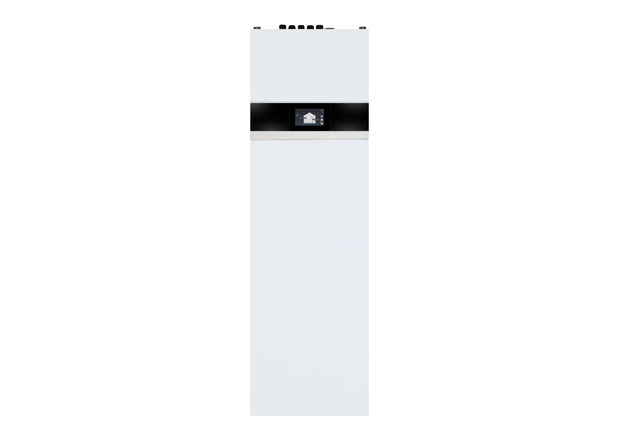

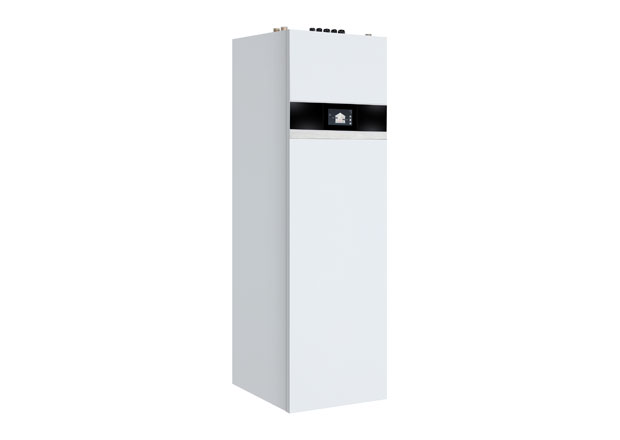

Highly integrated 250L DHW tank
With WIFI module and APP control
Natural and ecological refrigerant R290 with low GWP of 3
High energy efficiency and reaches A+++ energy level
As a wholesale heat pump supplier and the No.1 professional heating heat pump exporter, Amitime is ready to offer more solutions. Contact us today!
High energy efficiency and stable performance
With full inverter technology, it reaches A+++ energy level and COP is up to 5
Monoblock design for easy installation
Low noise solution with DC fan motor and improved air duct system
Supply high water temperature up to 70°C
| Model | EcoSTAR06M-AIO | EcoSTAR08M-AIO | EcoSTAR12M-AIO | EcoSTAR15M-AIO | |||
| Seasonal Energy-(According to EN14825) | |||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.81/3.59 | 4.85/3.65 | 4.76/3.56 | 4.74/3.50 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.91/4.55 | 6.93/6.40 | 8.97/8.21 | 12.55/11.01 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 189.3/140.6 | 190.9/143.1 | 187.5/139.4 | 186.5/136.9 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 2111/2616 | 2953/3622 | 3889/4766 | 5475/6505 | ||
| Sound power level (indoor/outdoor) | dB(A) | 33/54 | 33/54 | 34/56 | 37/56 | ||
| Nominal Capacity and Nominal Input | |||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.56/6.76 | 3.76/9.52 | 5.21/12.0 | 6.83/16.6 |
| Heating Power Input Min./Max. | kW | 0.58/1.52 | 0.68/2.04 | 0.99/3.06 | 1.27/4.18 | ||
| C.O.P | W/W | 4.44/ 4.83 | 4.67/5.57 | 3.93/5.31 | 3.98/5.38 | ||
| Heating Capacity Min./Max | 7/W45 | kW | 2.42/6.57 | 3.00/9.09 | 4.38/11.7 | 6.17/15.5 | |
| Heating Power Input Min./Max. | kW | 0.67/1.82 | 0.86/2.40 | 1.11/3.55 | 1.58/4.76 | ||
| C.O.P | W/W | 3.62 / 3.86 | 3.51/4.03 | 3.28/3.94 | 3.26/3.90 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 2.02/5.43 | 2.39/7.83 | 3.47/10.1 | 5.77/12.4 |
| Cooling Power Input Min./Max. | kW | 0.51/1.31 | 0.57/2.08 | 0.94/2.97 | 1.23/3.70 | ||
| E.E.R | W/W | 4.00/4.23 | 3.77/4.35 | 3.40/3.93 | 3.36/4.69 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.27/3.71 | 1.83/5.61 | 2.16/7.19 | 4.05/10.1 | |
| Cooling Power Input Min./Max. | kW | 0.52/1.30 | 0.62/2.00 | 0.97/2.76 | 1.26/3.55 | ||
| E.E.R | W/W | 2.46/2.95 | 2.46/2.99 | 2.23/2.64 | 2.84/3.22 | ||
| General Info | |||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 70/25 | 70/25 | 70/25 | 70/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R290 / 0.6kg | R290 / 0.7kg | R290 / 0.9kg | R290 / 1.5kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | ||
| Four-way valve + EEV | sanhua | sanhua | sanhua | sanhua | |||
| Fan | Quantity | 1 | 1 | 1 | 2 | ||
| Airflow | m3/h | 3150 | 3150 | 3300 | 6300 | ||
| Rated power | W | 62 | 62 | 62 | 124 | ||
| Water Side | Type | Plate Heat Exchanger | |||||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.27/0.38/0.50 | 0.40/0.57/0.75 | 0.50/0.72/0.93 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | 600x730x1720 | 600x730x1720 | 600x730x1720 | 600x730x1720 |
| Outdoor Unit | mm | 1255x460x860 | 1255x460x860 | 1255x460x960 | 1140x453x1465 | ||
| Net Weight | Indoor Unit | kg | 117 | 117 | 117 | 117 | |
| Outdoor Unit | kg | 95 | 115 | 115 | 150 | ||
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | |||||||
