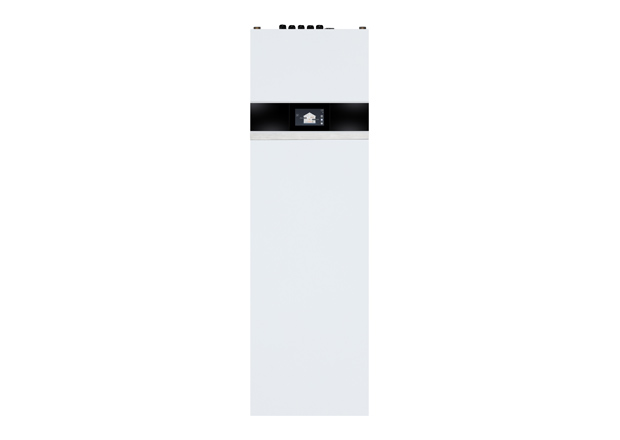

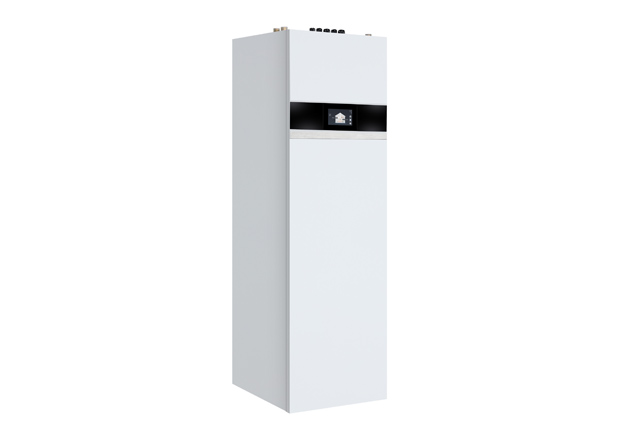

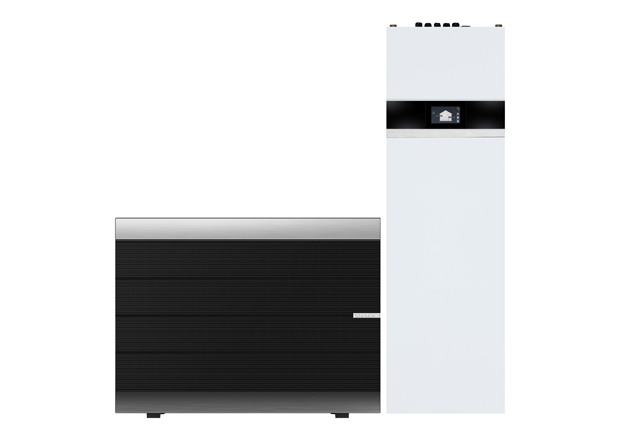

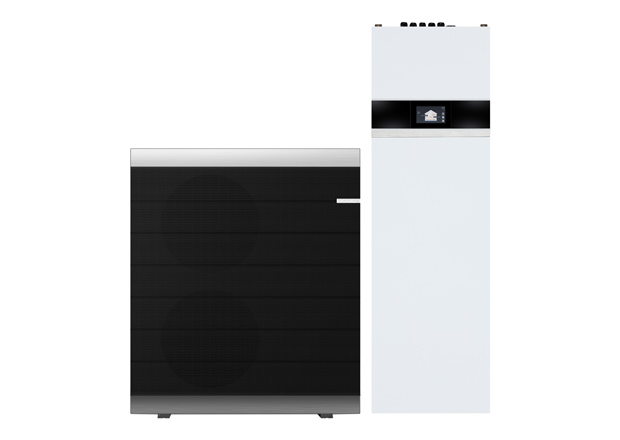

Name: EcoSTAR R290 Pro Series M-AIO
Brand: AMITIME ELECTRIC CO.,LTD.
Availability: InStock

Details of （R290）EcoSTAR Pro Series M-AIO

Model				EcoSTAR Pro 08M-AIO	EcoSTAR Pro 12M-AIO	EcoSTAR Pro 15M-AIO	EcoSTAR Pro 20M-AIO
Seasonal Energy-(According to EN14825)
ErP	Energy class - Heating (35°C/55°C)		-	A+++/A+++	A+++/A+++	A+++/A+++	A+++/A+++
	SCOP(35°C/55°C)		W/W	5.23/3.89	5.48/4.12	5.34/4.0	5.0/3.85
	Rated Heat Output(Prated) (35°C/55°C)		kW	7.34/7.31	9.83/9.60	13.1/12.4	16.1/15.3
	Seasonal Space Heating Efficiency (ηs) (35°C/55°C)		%	206/153	216/162	211/158	197/150
	Annual Energy Consumption(35°C/55°C)		kWh	2901/3881	3706/4812	5082/6360	6617/8604
	Sound power level (indoor/outdoor)		dB(A)	35/49	31/50	52.9/55	45/65
Nominal Capacity and Nominal Input
Nominal heating	Heating Capacity Min./Max	A7/W35	kW	2.9/9.6	3.7/12.2	5.3/15.9	4.9/20.3
	Heating Power Input Min./Max.		kW	0.55/1.90	0.67/2.46	0.97/3.24	1.02/5.19
	C.O.P		W/W	5.21/5.05	5.63/4.95	5.49/4.90	4.81/3.90
	Heating Capacity Min./Max	7/W45	kW	2.7/9.2	3.5/11.6	4.9/15.2	4.4/19.6
	Heating Power Input Min./Max.		kW	0.69/2.38	0.83/2.94	1.22/3.80	1.22/6.03
	C.O.P		W/W	3.86/3.87	4.04/3.94	4.02/4.00	3.65/3.25
Nominal cooling	Cooling Capacity Min./Max	A35/W18	kW	3.4/9.0	6.3/12.2	7.8/15.3	9.3/20.1
	Cooling Power Input Min./Max.		kW	0.81/2.46	1.16/2.95	1.57/4.12	1.80/5.62
	E.E.R		W/W	4.17/3.67	5.38/4.12	4.97/3.70	5.17/3.58
	Cooling Capacity Min./Max	A35/W7	kW	2.3/7.0	3.3/9.2	5.2/12.1	4.5/12.3
	Cooling Power Input Min./Max.		kW	0.88/2.34	1.19/2.78	1.65/3.79	1.74/4.06
	E.E.R		W/W	2.59/2.99	2.80/3.32	3.18/3.19	2.61/3.05
General Info
Electrical data	Power supply		V/Hz/Ph	220-240/50/1	220-240/50/1	380/50/3	380/50/3
Operation limits	Ambient Temperature Range		℃	-25~43	-25~43	-25~43	-25~43
	Water temperature range(heating)		℃	75/20	75/20	75/20	75/20
	Water temperature range(cooling)		℃	25/7	25/7	25/7	25/7
Refrigerant side	Refrigerant	Type / Amount	- / kg	R290/0.9kg	R290/1.2kg	R290/1.8kg	R290/1.9kg
	Compressor	Type - Quantity/System		Rotary	Rotary	Rotary	Rotary
	Four-way valve + EEV			sanhua	sanhua	sanhua	sanhua
	Fan	Quantity		1	1	2	2
		Airflow	m3/h	3280	3300	6300	6300
		Rated power	W	116	172	62*2	62*2
Water Side	Type			Plate Heat Exchanger
	Water Pressure Drop		kPa	23	/	/	/
	Piping Connection		Inch	G1"	G1"	G1-1/4"	G1-1/4"
	Allowable Water Flow-Min./Rated./Max.		L/S	0.27/0.38/0.50	0.40/0.57/0.75	0.50/0.72/0.93	0.67/0.96/1.24
Dimension	Net Dimension(L×D×H)	Indoor Unit	mm	5907051950	5907051950	5907051950	5907051950
	Net Dimension(L×D×H)	Outdoor Unit	mm	1260x395x1000	1260x395x1000	1260x420x1525	1347x442x1458
	Net Weight	Indoor Unit	kg	172	172	172	172
	Net Weight	Outdoor Unit	kg	125	140	160	170
The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.
