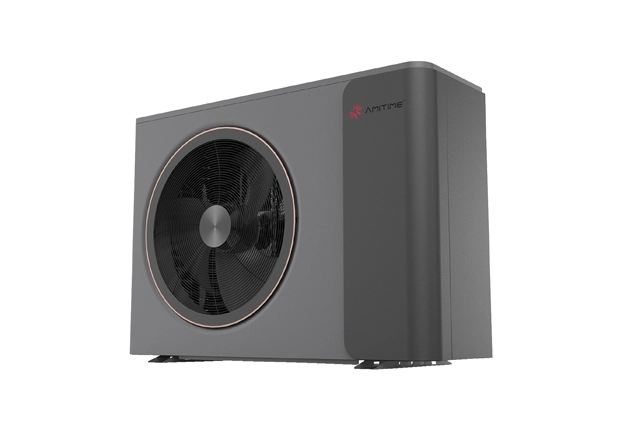

Name: HeatLITE M-FM Range
Brand: AMITIME ELECTRIC CO.,LTD.
Availability: InStock

Features of HeatLITE M-FM Range Residential Heat Pumps

Monoblock type

A+++Energy Rating Level

Low noise solution with EC fan motor and improved air duct system

User-friendly Touchscreen Interface

WiFi solution available

Supplies high water temperature up to 70°C

Details of HeatLITE M-FM Range Residential Heat Pumps

Model				HeatLITE06M-FM	HeatLITE09M-FM	HeatLITE12M-FM	HeatLITE15M-FM	HeatLITE19M-FM
Seasonal Energy-(According to EN14825)
ErP	Energy class - Heating (35°C/55°C)		-	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++
	SCOP(35°C/55°C)		W/W	4.52/3.36	4.53/3.29	4.50/3.29	4.65/3.55	4.59/3.49
	Rated Heat Output(Prated) (35°C/55°C)		kW	5.82/5.39	8.49/7.45	8.68/7.88	12.64/11.58	14.46/13.77
	Seasonal Space Heating Efficiency (ηs) (35°C/55°C)		%	177.6/131.3	178.1/128.7	177.2/128.7	183/139.1	180.7/136.6
	Annual Energy Consumption(35°C/55°C)		kWh	2661/3318	3874/4675	3983/4946	5616/6732	6503/8150
	Sound power level (indoor/outdoor)		dB(A)	54	61	62	62	65
Nominal Capacity and Nominal Input
Nominal heating	Heating Capacity Min./Max	A7/W35	kW	3.3/7.2	5.0/9.7	5.9/11.9	5.9/16.4	6.6/18.8
	Heating Power Input Min./Max.		kW	0.7/1.6	1.0/2.4	1.3/2.9	1.25/3.7	1.3/4.6
	C.O.P		W/W	4.26/4.87	4.01/4.57	4.05/4.67	4.3/4.7	4.03/5.01
	Heating Capacity Min./Max	7/W45	kW	3.1/6.9	4.2/8.9	6.0/11.5	4.4/15.8	6.1/18.4
	Heating Power Input Min./Max.		kW	0.9/1.9	1.3/2.9	1.6/3.6	1.64/4.5	1.7/5.6
	C.O.P		W/W	3.41/3.78	3.03/3.4	3.19/3.66	2.68/3.5	3.29/3.71
Nominal cooling	Cooling Capacity Min./Max	A35/W18	kW	3.1/7.1	4.2/9.1	5.1/12.2	7.5/16.9	5.5/19.2
	Cooling Power Input Min./Max.		kW	0.82/1.9	1.2/2.9	1.34/3.4	1.34/4.0	1.3/5.0
	E.E.R		W/W	3.32/4.25	3.28/4.24	3.33/4.33	4.23/5.6	3.81/4.71
	Cooling Capacity Min./Max	A35/W7	kW	1.8/4.8	3.1/7.9	4.2/8.9	5.1/11.2	4.7/13.1
	Cooling Power Input Min./Max.		kW	0.66/2.54	1.1/3.2	1.6/3.1	1.4/3.6	1.5/4.6
	E.E.R		W/W	2.54/2.84	2.38/2.83	2.61/3.22	3.06/3.6	2.89/3.25
General Info
Electrical data	Power supply		V/Hz/Ph	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
Operation limits	Ambient Temperature Range		℃	-25~43	-25~43	-25~43	-25~43	-25~43
	Water temperature range(heating)		℃	58/25	58/25	58/25	58/25	58/25
	Water temperature range(cooling)		℃	20 / 7	20 / 7	20 / 7	20 / 7	20 / 7
Refrigerant side	Refrigerant	Type / Amount	- / kg	R32 / 0.75	R32 / 1.15	R32 /1.3	R32 / 2.6	R32 /2.9
	Compressor	Type - Quantity/System		Rotary	Rotary	Rotary	Rotary	Rotary
	Four-way valve + EEV			sanhua	sanhua	sanhua	sanhua	sanhua
	Fan	Quantity		1	1	1	1	1
		Airflow	m3/h	2500	3280	3280	6200	6200
		Rated power	W	60	62	62	124	124
Water Side	Type			Plate Heat Exchanger
	Water Pressure Drop		kPa	23	23	23	23	23
	Piping Connection		Inch	G1"	G1"	G1"	G1-1/4"	G1-1/4"
	Allowable Water Flow-Min./Rated./Max.		L/S	0.20/0.29/0.37	0.30/0.43/0.56	0.40/0.57/0.75	0.5/0.72/0.93	0.64/0.91/1.18
Dimension	Net Dimension(L×D×H)	Indoor Unit	mm	/	/	/	/	/
	Net Dimension(L×D×H)	Outdoor Unit	mm	1015x380x700	1175x380x845	1175x380x845	1095x405x1440	1095x405x1440
	Net Weight	Indoor Unit	kg	/	/	/	/	/
	Net Weight	Outdoor Unit	kg	70	79	82	133	138
The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.

Product Description

heatLITE-DC Inverter Air to Water Heat Pump

Amitime's HeatLITE system has been developed with the idea in mind for maximum possible energy savings, through its ultra-high SCOP rating and quiet operation. The latest development in DC inverter technologies and their application in various internal components, including the compressor, fan, and water pump, has been a major player in the success of our HeatLITE line.
