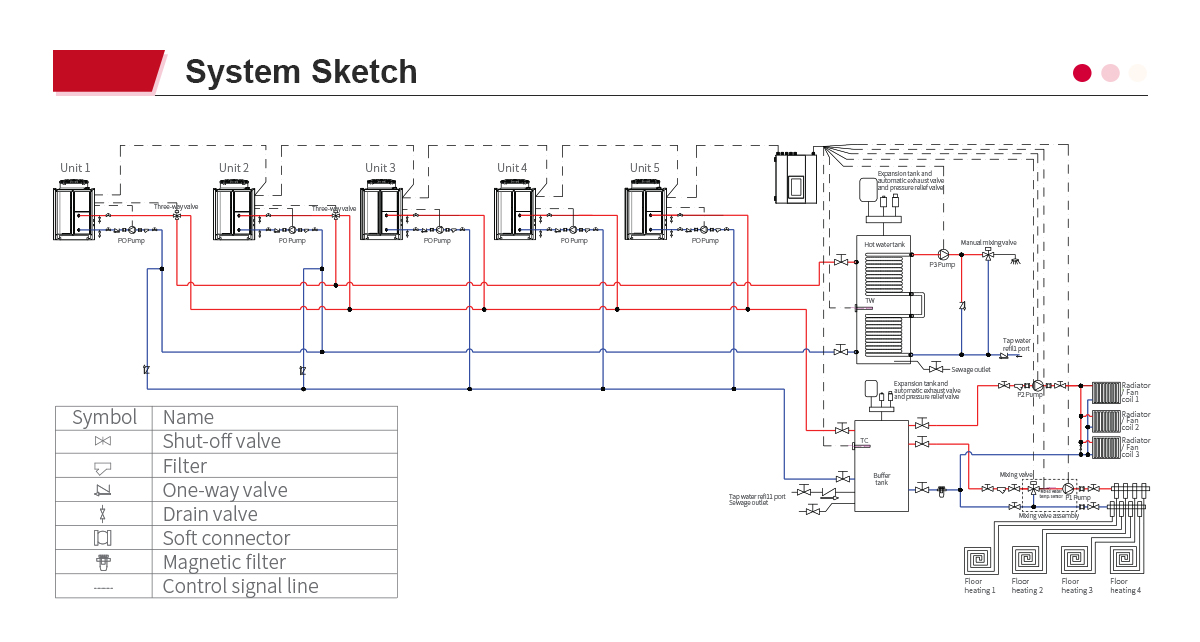

With powerful output and various ouput avalable, powerSTAR seres provides comfortable heating, cooling and sanitary hot water to al users, not only forprojects including hotels, ofices, etc, but also factones and other industry usage. With optimized cascade system, powerSTAR is suitable for all kinds ofdemand.
In addton to comior, saielylis the other most important polnt dumng design ot powerSTAR. With advanced saiely control system, users can enioy coninuous comfort effectively and safely.
| Model | PowerSTAR+ 30M | PowerSTAR+ 40M | PowerSTAR+ 80M | |||
| Seasonal Energy-(According to EN14825) | ||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A+++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 5.00/3.83 | 4.86/3.71 | 4.8/3.6 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 25/24 | 28.6/28.1 | 56/54 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 197/150 | 191.5/145.7 | 190/145 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 10743/13198 | 12166/15641 | 24332/31282 | ||
| Sound power level (indoor/outdoor) | dB(A) | / | / | / | ||
| Nominal Capacity and Nominal Input | ||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 9.52/28.95 | 12.7/38.6 | 25.5/77.2 |
| Heating Power Input Min./Max. | kW | 2.1/9.22 | 2.8/12.3 | 5.6/24.6 | ||
| C.O.P | W/W | 4.50/3.10 | 4.58/3.15 | 4.58/3.15 | ||
| Heating Capacity Min./Max | 7/W45 | kW | 8.9/28.6 | 11.9/38.2 | 23.8/76.4 | |
| Heating Power Input Min./Max. | kW | 2.4/9.6 | 3.3/12.8 | 6.6/25.6 | ||
| C.O.P | W/W | 3.60/2.80 | 3.61/2.9 | 3.61/2.9 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 9.0/25.6 | 12.1/34.2 | 24.2/68.4 |
| Cooling Power Input Min./Max. | kW | 2.1/6.8 | 2.8/9.1 | 5.6/18.2 | ||
| E.E.R | W/W | 4.20/3.70 | 4.33/3.75 | 4.33/3.75 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 3.3/18.8 | 4.5/25.1 | 9/50.2 | |
| Cooling Power Input Min./Max. | kW | 2.1/7.0 | 2.9/9.4 | 5.8/18.8 | ||
| E.E.R | W/W | 1.50/2.60 | 1.56/2.67 | 1.56/2.67 | ||
| General Info | ||||||
| Electrical data | Power supply | V/Hz/Ph | 380-420/50/3 | 380-420/50/3 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 75/20 | 75/20 | 75/20 | ||
| Water temperature range(cooling) | ℃ | 25/7 | 25/7 | 25/7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R290 / 2.5kg | R290 / 4.2kg | R290 /4.2kg * 2 |
| Compressor | Type - Quantity/System | Scroll | Scroll | Scroll | ||
| Four-way valve + EEV | san hua | san hua | san hua | |||
| Fan | Quantity | 2 | 1 | 2 | ||
| Airflow | m3/h | 7500 | / | / | ||
| Rated power | W | 120*2 | 1100 | 1100*2 | ||
| Water Side | Type | Plate Heat Exchanger | ||||
| Water Pressure Drop | kPa | / | / | / | ||
| Piping Connection | Inch | G1-1/2" | G2" | G3" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 1/1.4/1.8 | 1.3/1.9/2.5 | 2.6/3.8/5 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | 390x450x132 | 390x450x132 | 390x450x132 |
| Outdoor Unit | mm | 1510x620x1735 | 1170x970x1620 | 2540x970x1650 | ||
| Net Weight | Indoor Unit | kg | 10 | 10 | 10 | |
| Outdoor Unit | kg | 250 | 320 | 610 | ||
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||||
