Name: PowerSTAR Series Commercial Heat Pumps
Brand: AMITIME ELECTRIC CO.,LTD.
Availability: InStock

Technical Data of PowerSTAR Series Commercial Heat Pumps

Model			powerSTAR45M	powerSTAR90M
IP rating		IPXX	IPX4	IPX4
Power supply - Outdoor unit	Outdoor unit	V / Hz / Ph	400V/50Hz/3Ph	400V/50Hz/3Ph
Power supply - Outdoor unit	Fuse Outdoor unit	A	3p/40A/C	3p/80A/C
Heating condition: water inlet/outlet temperature: 30 °C/35°C, Ambient temperature: DB 7 °C /WB 6 °C
Min/max heating capacity		kW	13.7~43.7	27.4~89.6
El. heating power input min/max		KW	3325~12077	6650~24254
C.O.P min/max		W/W	3.62~4.42	3.68~4.50
Heating condition: water inlet/outlet temperature: 40°C/45°C, Ambient temperature: DB 7 °C /WB 6 °C
Min/max heating capacity		kW	13.6~43.2	28.2~89.5
El. heating power input min/max		KW	4156~14308	8212~28300
C.O.P min/max		W/W	2.99~3.38	3.16~3.48
SCOP - Average climate, low temperature		W	4.12	4.2
Energy class			A++	A++
Cooling condition: water inlet/outlet temperature: 23 °C/18°C, Ambient temperature: DB 35 °C /WB 24 °C
Min/max cooling capacity		kW	17.7~32.0	36.4~66.0
El. coolimg power input min/max		KW	3491~11771	6982~23742
E.E.R. min/max		W/W	2.72~5.09	2.8~5.19
Cooling condition: water inlet/outlet temperature: 12°C/7°C, Ambient temperature: DB 35 °C /WB 24 °C
Min/max cooling capacity (A35/W7)		kW	11.2~29.9	23.4~61.2
El. cooling power input min/max		KW	3529~11640	6.88~23450
E.E.R. min/max		W/W	2.57~3.3	2.61~3.4
Min/max ambient working temp. in heating mode			-85	-85
Min/max ambient working temp. in cooling mode		°C	15-55	15-55
Max flow temp. in heating mode		°C	60	60
Min flow temp. in heating mode		°C	20	20
Min flow temp. in cooling mode		°C	7	7
Sound power level	Outdoor unit/Indoor unit	dB (A)	66/-	69/-
Components
Compressor heater		W	30	30*2
Fan	Yes	pcs	1	2
Fan	Airflow	m³/h	13500	13500*2
Tube in shell heat exchange	Water press. drop	kPa	80	100
Tube in shell heat exchange	Piping connection	Inch	2" Inner gorve	DN65 Flange
Refrigerant	type	/	R410A	R410A
Refrigerant	charge	kg	8kg	8kg*2
Compressor	type	/	Inverter+EVI	Inverter+EVI
Compressor	Compressor brand and type		Panasonic, twin rotary	Mitsubishi Electric scroll
Hydraulics
Minimum water flow		m³/h - l/s	5m³/h	10m³/h
Nominal water flow		m³/h	8m³/h	16m³/h
Hydraulic connections		Size	2" Inner gorve	DN65 Flange

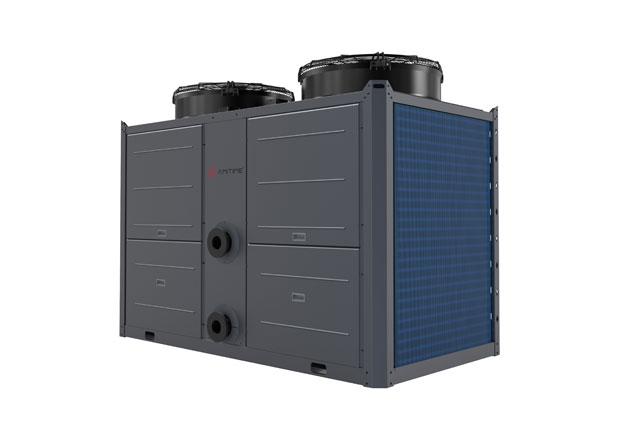

Net Dimensions (L x D x H)	Outdoor unit	mm	101011601650	216012001650

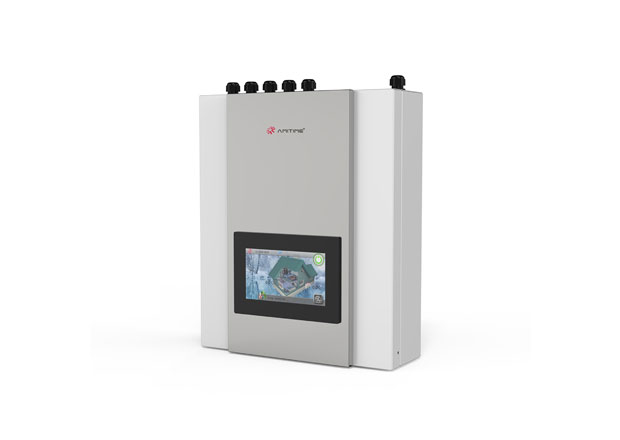

Net Dimensions (L x D x H)	Indoor unit	mm	385476150	385476150
Dimensions (L x D x H)	Outdoor unit	mm	103011801750	218012201750
Dimensions (L x D x H)	Indoor unit	mm	400490180	400490180
Net weight	Outdoor unit/Indoor unit	kg	300/9	600/9
weight	Outdoor unit/Indoor unit	kg	370/10	680/10
The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.
