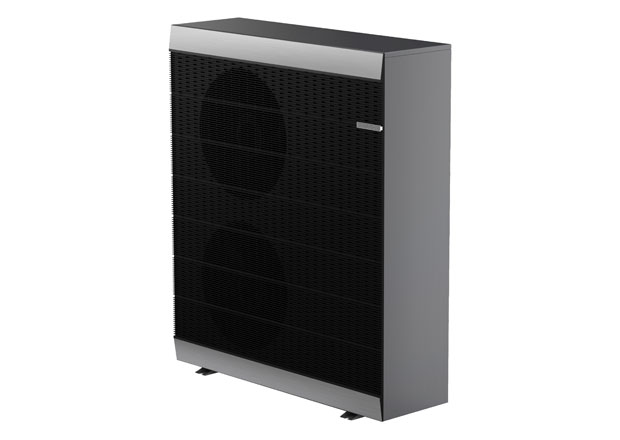

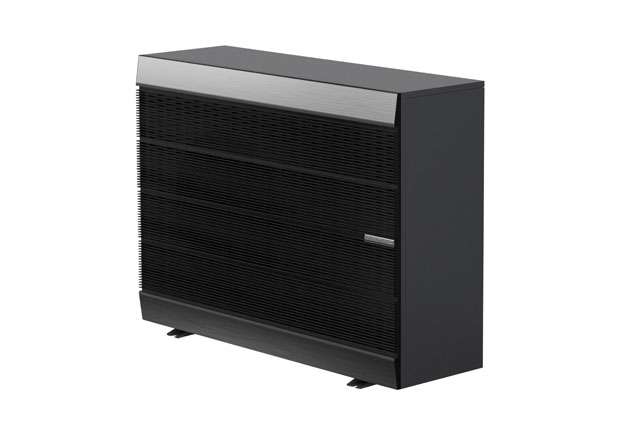

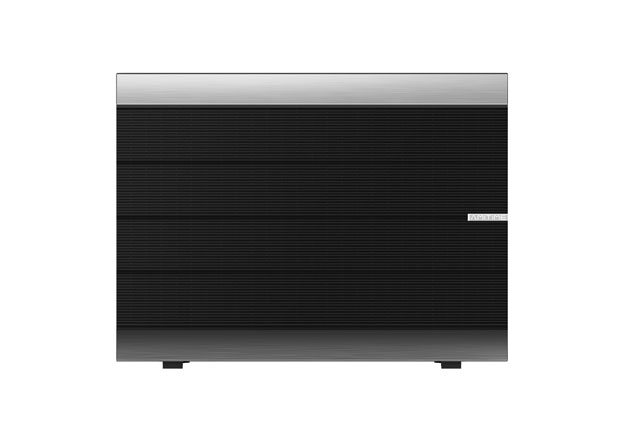

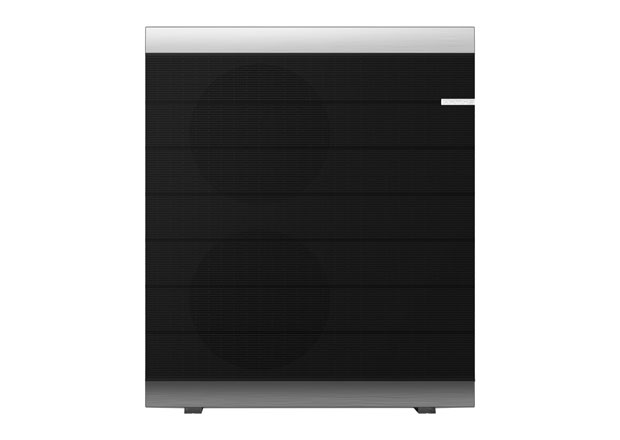

AMITIME EcoSTAR series R290 heat pump is now the best solution for new buildings, which can reach the max. heating temp. up to 75℃. With good performance in this water temp. range, air to water R290 heat pump unit is now possibly used to reform the old gas/oil boiler without changing the existing heating distribution system.
Supply high water temperature up to 75℃
Easy installation and maintenance
With WIFI module and APP control
Natural and ecological refrigerant R290 with low GWP of 3
High energy efficiency and reaches A+++ energy level
If you want to know more about the R290 refrigerant heat pump and R290 heat pump prices, reach out to Amitime heat pump supplier today!
Full Monoblock type
A+++ Energy Rating Level
Low noise solution with DC fan motor and improved air duct system
Userfriendly touch screen Interface
Wifi solution available
Supply high water temperature up to 70°C
| Model | EcoSTAR06M-FM | EcoSTAR08M-FM | EcoSTAR12M-FM | EcoSTAR15M-FM | |||
| Seasonal Energy-(According to EN14825) | |||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.81/3.59 | 4.85/3.65 | 4.76/3.56 | 4.74/3.50 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.91/4.55 | 6.93/6.40 | 8.97/8.21 | 12.55/11.01 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 189.3/140.6 | 190.9/143.1 | 187.5/139.4 | 186.5/136.9 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 2111/2616 | 2953/3622 | 3889/4766 | 5475/6505 | ||
| Sound power level (indoor/outdoor) | dB(A) | - /54 | - /54 | - /56 | - /56 | ||
| Nominal Capacity and Nominal Input | |||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.56/6.76 | 3.76/9.52 | 5.21/12.0 | 6.83/16.6 |
| Heating Power Input Min./Max. | kW | 0.58/1.52 | 0.68/2.04 | 0.99/3.06 | 1.27/4.18 | ||
| C.O.P | W/W | 4.44/ 4.83 | 4.67/5.57 | 3.93/5.31 | 3.98/5.38 | ||
| Heating Capacity Min./Max | 7/W45 | kW | 2.42/6.57 | 3.00/9.09 | 4.38/11.7 | 6.17/15.5 | |
| Heating Power Input Min./Max. | kW | 0.67/1.82 | 0.86/2.40 | 1.11/3.55 | 1.58/4.76 | ||
| C.O.P | W/W | 3.62 / 3.86 | 3.51/4.03 | 3.28/3.94 | 3.26/3.90 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 2.02/5.43 | 2.39/7.83 | 3.47/10.1 | 5.77/12.4 |
| Cooling Power Input Min./Max. | kW | 0.51/1.31 | 0.57/2.08 | 0.94/2.97 | 1.23/3.70 | ||
| E.E.R | W/W | 4.00/4.23 | 3.77/4.35 | 3.40/3.93 | 3.36/4.69 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.27/3.71 | 1.83/5.61 | 2.16/7.19 | 4.05/10.1 | |
| Cooling Power Input Min./Max. | kW | 0.52/1.30 | 0.62/2.00 | 0.97/2.76 | 1.26/3.55 | ||
| E.E.R | W/W | 2.46/2.95 | 2.46/2.99 | 2.23/2.64 | 2.84/3.22 | ||
| General Info | |||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 70/25 | 70/25 | 70/25 | 70/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R290 / 0.6kg | R290 / 0.7kg | R290 / 0.9kg | R290 / 1.5kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | ||
| Four-way valve + EEV | sanhua | sanhua | sanhua | sanhua | |||
| Fan | Quantity | 1 | 1 | 1 | 2 | ||
| Airflow | m3/h | 3150 | 3150 | 3300 | 6300 | ||
| Rated power | W | 62 | 62 | 62 | 124 | ||
| Water Side | Type | Plate Heat Exchanger | |||||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.27/0.38/0.50 | 0.40/0.57/0.75 | 0.50/0.72/0.93 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | / | / | / | / |
| Outdoor Unit | mm | 1255x460x860 | 1255x460x860 | 1255x460x960 | 1140x453x1465 | ||
| Net Weight | Indoor Unit | kg | / | / | / | / | |
| Outdoor Unit | kg | 99 | 107 | 119 | 154 | ||
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | |||||||
