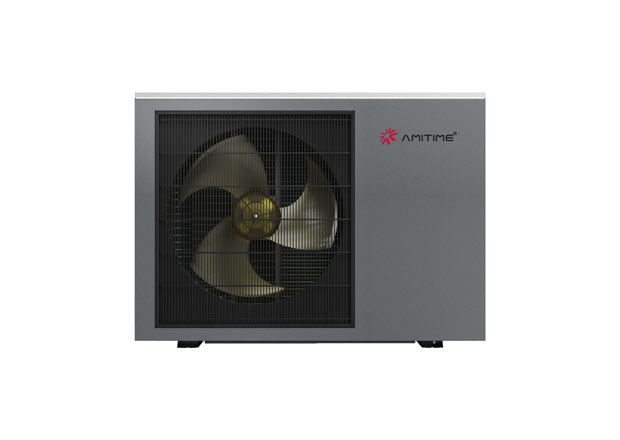

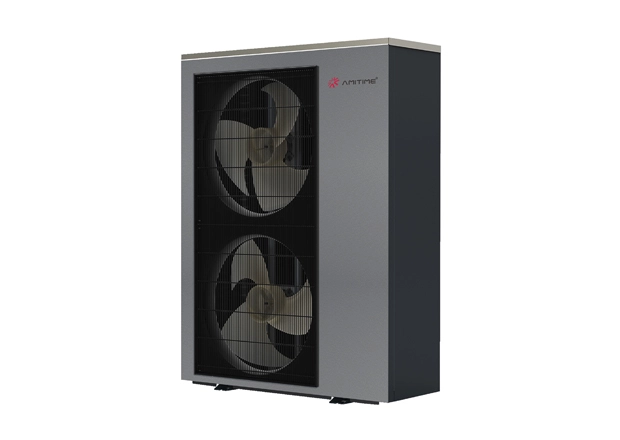

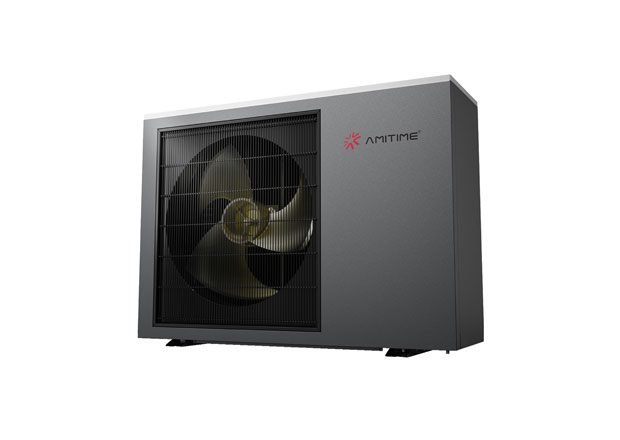

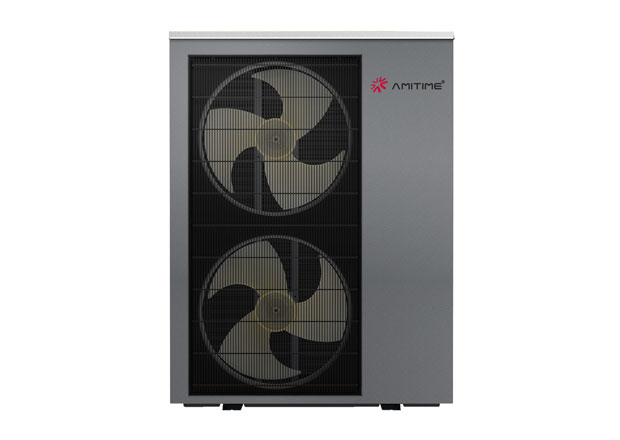

Amitime's M-FM Range R32 heat pumps feature high energy efficiency and can reach A+++ energy level according to EU regulations. These wholesale R32 heat pumps with advanced DC inverter technology and minimal maintenance requirements can save your energy bills significantly.
High energy efficiency and reaches A+++ energy level
Intelligent temperature control curves
Easy and fast installation especially full monoblock design for easy installation
Modbus Protocol available
Super low noise, sound pressure level only 38dB(A) at 2.1 meters
Contact Amitime heat pump supplier today to learn more about our range of R32 heat pumps.
Full Monoblock type
A+++ Energy Rating Level
Low noise sound power level as low as 52dB(A)
User-friendly touch screen Interface
Work down to -25°C
| Model | HeatSTAR06M-FM | HeatSTAR09M-FM | HeatSTAR12M-FM | HeatSTAR15M-FM | HeatSTAR19M-FM | |||
| Seasonal Energy-(According to EN14825) | ||||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.58/3.40 | 4.61/3.32 | 4.60/3.36 | 4.70/3.24 | 4.70/3.28 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.13/4.56 | 6.39/5.97 | 8.79/7.07 | 11.60/11.04 | 16.19/12.29 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 180.1/133.2 | 181.3/129.6 | 181.2/131.5 | 185.1/126.6 | 185/128.1 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 1865/2770 | 2864/3720 | 3944/4345 | 5096/7039 | 7117/7746 | ||
| Sound power level (indoor/outdoor) | dB(A) | - /54 | - /54 | - /54 | - /57 | - /57 | ||
| Nominal Capacity and Nominal Input | ||||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.86/7.45 | 3.52/9.22 | 4.49/11.7 | 6.02/15.5 | 7.68/18.5 |
| Heating Power Input Min./Max. | kW | 0.71/1.74 | 0.82/2.14 | 0.99/2.77 | 1.42/3.38 | 1.57/4.23 | ||
| C.O.P | W/W | 4.06/4.43 | 4.31/4.59 | 4.22/4.64 | 4.23/4.96 | 4.38/4.89 | ||
| Heating Capacity Min./Max | 7/W45 | kW | 2.64/6.80 | 3.16/8.68 | 3.85/11.3 | 5.32/14.5 | 6.97/18.2 | |
| Heating Power Input Min./Max. | kW | 0.86/2.06 | 1.01/2.56 | 1.24/3.35 | 1.58/4.09 | 1.94/5.08 | ||
| C.O.P | W/W | 3.07/3.37 | 3.12/3.49 | 3.12/3.47 | 3.37/3.70 | 3.58/3.72 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 3.11/7.41 | 4.30/9.49 | 7.0/ 9.8 | 7.23/18.6 | 16/19.3 |
| Cooling Power Input Min./Max. | kW | 0.46/1.89 | 0.54/2.29 | 1.73/ 2.51 | 1.42/5.0 | 4.70/6.30 | ||
| E.E.R | W/W | 3.92/4.7 | 4.15/4.7 | 4.05 / 3.9 | 3.71/5.09 | 3.05/3.41 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.96/4.26 | 2.21/6.40 | 3.03/8.49 | 4.46/13.1 | 5.84/15.8 | |
| Cooling Power Input Min./Max. | kW | 0.54/1.77 | 0.60/2.13 | 0.79/3.08 | 2.68/4.32 | 1.33/5.47 | ||
| E.E.R | W/W | 2.40/3.64 | 2.94/3.68 | 2.57/3.86 | 1.67/3.22 | 2.89/4.40 | ||
| General Info | ||||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 58/25 | 58/25 | 58/25 | 58/25 | 58/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R32/ 0.9kg | R32 / 1.4kg | R32 /1.8kg | R32 / 2.55kg | R32 / 2.6kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | Rotary | ||
| Four-way valve + EEV | sanhua | sanhua | sanhua | sanhua | sanhua | |||
| Fan | Quantity | 1 | 1 | 1 | 1 | 1 | ||
| Airflow | m3/h | 2500 | 3150 | 3150 | 6200 | 6200 | ||
| Rated power | W | 35 | 45 | 45 | 90 | 90 | ||
| Water Side | Type | Plate Heat Exchanger | ||||||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.30/0.43/0.56 | 0.40/0.57/0.75 | 0.5/0.72/0.93 | 0.64/0.91/1.18 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | / | / | / | / | / |
| Outdoor Unit | mm | 1010x370x700 | 1165x370x845 | 1165x370x845 | 1085x400x1450 | 1085x400x1450 | ||
| Net Weight | Indoor Unit | kg | / | / | / | / | / | |
| Outdoor Unit | kg | 69 | 82 | 89 | 134 | 144 | ||
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||||||
